Koyo 53315
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

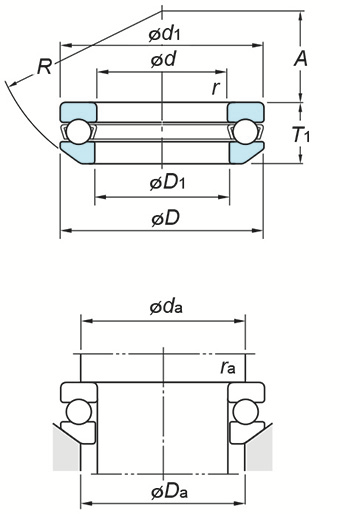

(Boundary dimensions ...etc)
d
75 mm
D
135 mm
T
48.1 mm
r(min.)
1.5 mm
Basic load ratings Ca
192 kN
Basic load ratings C0a
339 kN
Fatigue load limit : Cu
15.0 kN
Limiting speeds(Grease lub.)
1200 min-1
Limiting speeds(Oil lub.)
1900 min-1
d1(max.)
135 mm
D1(min.)
77 mm
D2
- mm
D3
- mm
A
37 mm
R
100 mm
C
- mm
Mounting dimensions
da(min.)
111 mm
Da(max.)
99 mm
ra(max.)
1.5 mm
Refer.
(Refer.)Mass
2.72 kg
