Koyo 53316U
(BRAND)：KOYO
(Availability)：In Stock
Specifications

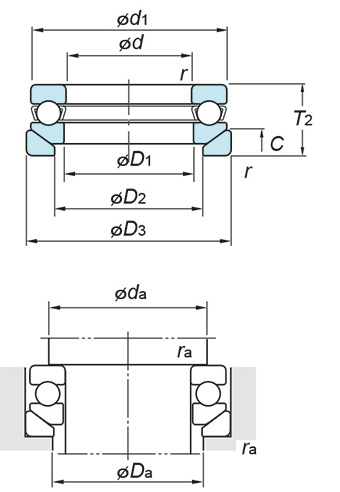

(Boundary dimensions ...etc)
d
80 mm
D
140 mm
T
52 mm
r(min.)
1.5 mm
Basic load ratings Ca
200 kN
Basic load ratings C0a
368 kN
Fatigue load limit : Cu
15.8 kN
Limiting speeds(Grease lub.)
1200 min-1
Limiting speeds(Oil lub.)
1800 min-1
d1(max.)
140 mm
D1(min.)
82 mm
D2
110 mm
D3
145 mm
A
- mm
R
- mm
C
15 mm
Mounting dimensions
da(min.)
116 mm
Da(max.)
104 mm
ra(max.)
1.5 mm
Refer.
(Refer.)Mass
3.43 kg
