Koyo 53317
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

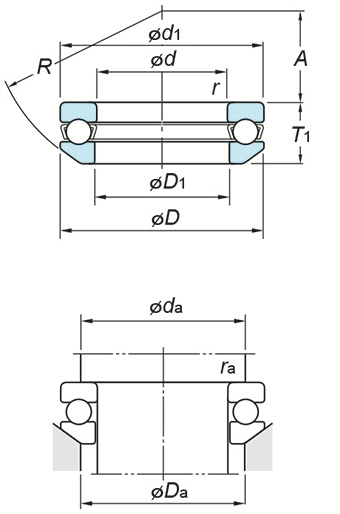

(Boundary dimensions ...etc)
d
85 mm
D
150 mm
T
53.1 mm
r(min.)
1.5 mm
Basic load ratings Ca
232 kN
Basic load ratings C0a
419 kN
Fatigue load limit : Cu
17.5 kN
Limiting speeds(Grease lub.)
1100 min-1
Limiting speeds(Oil lub.)
1700 min-1
d1(max.)
150 mm
D1(min.)
88 mm
D2
- mm
D3
- mm
A
43 mm
R
112 mm
C
- mm
Mounting dimensions
da(min.)
124 mm
Da(max.)
111 mm
ra(max.)
1.5 mm
Refer.
(Refer.)Mass
3.63 kg
