Koyo 53320U
(BRAND)：KOYO
(Availability)：In Stock
Specifications

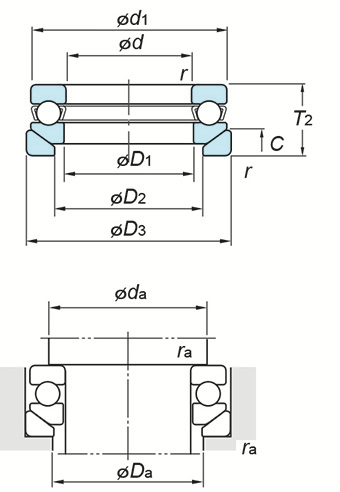

(Boundary dimensions ...etc)
d
100 mm
D
170 mm
T
64 mm
r(min.)
1.5 mm
Basic load ratings Ca
296 kN
Basic load ratings C0a
595 kN
Fatigue load limit : Cu
23.2 kN
Limiting speeds(Grease lub.)
940 min-1
Limiting speeds(Oil lub.)
1450 min-1
d1(max.)
170 mm
D1(min.)
103 mm
D2
135 mm
D3
175 mm
A
- mm
R
- mm
C
18 mm
Mounting dimensions
da(min.)
142 mm
Da(max.)
128 mm
ra(max.)
1.5 mm
Refer.
(Refer.)Mass
6.05 kg
