Koyo 53406
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

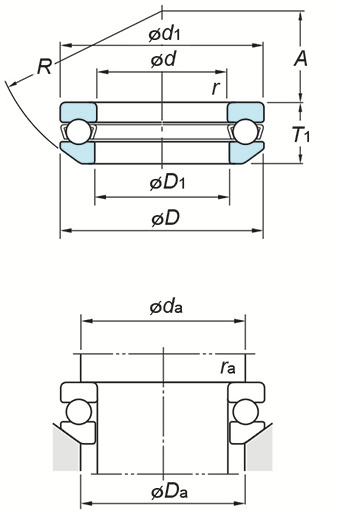

(Boundary dimensions ...etc)
d
30 mm
D
70 mm
T
30.1 mm
r(min.)
1 mm
Basic load ratings Ca
91.0 kN
Basic load ratings C0a
126 kN
Fatigue load limit : Cu
5.70 kN
Limiting speeds(Grease lub.)
2200 min-1
Limiting speeds(Oil lub.)
3400 min-1
d1(max.)
70 mm
D1(min.)
32 mm
D2
- mm
D3
- mm
A
20 mm
R
56 mm
C
- mm
Mounting dimensions
da(min.)
54 mm
Da(max.)
46 mm
ra(max.)
1 mm
Refer.
(Refer.)Mass
0.530 kg
