Koyo 53411
(BRAND)：KOYO
(Availability)：In Stock
Specifications

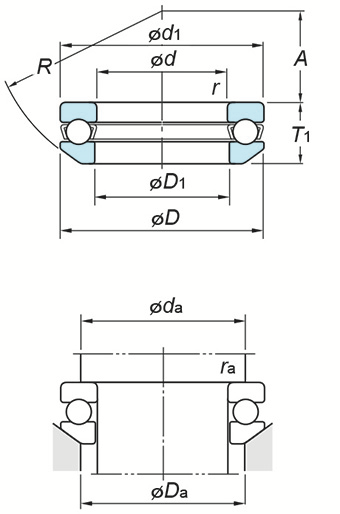

(Boundary dimensions ...etc)
d
55 mm
D
120 mm
T
50.5 mm
r(min.)
1.5 mm
Basic load ratings Ca
223 kN
Basic load ratings C0a
359 kN
Fatigue load limit : Cu
16.2 kN
Limiting speeds(Grease lub.)
1200 min-1
Limiting speeds(Oil lub.)
1900 min-1
d1(max.)
120 mm
D1(min.)
57 mm
D2
- mm
D3
- mm
A
28 mm
R
90 mm
C
- mm
Mounting dimensions
da(min.)
94 mm
Da(max.)
81 mm
ra(max.)
1.5 mm
Refer.
(Refer.)Mass
2.57 kg
