Koyo 53413
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

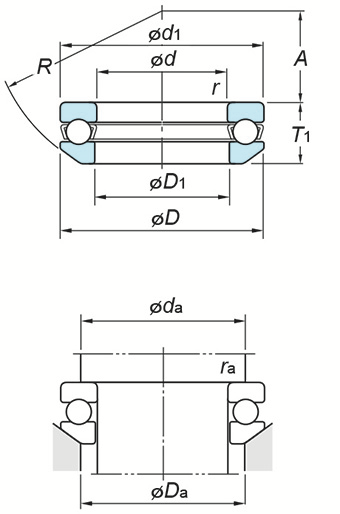

(Boundary dimensions ...etc)
d
65 mm
D
140 mm
T
60.2 mm
r(min.)
2 mm
Basic load ratings Ca
290 kN
Basic load ratings C0a
493 kN
Fatigue load limit : Cu
22.0 kN
Limiting speeds(Grease lub.)
1000 min-1
Limiting speeds(Oil lub.)
1600 min-1
d1(max.)
140 mm
D1(min.)
68 mm
D2
- mm
D3
- mm
A
40 mm
R
112 mm
C
- mm
Mounting dimensions
da(min.)
110 mm
Da(max.)
95 mm
ra(max.)
2 mm
Refer.
(Refer.)Mass
4.47 kg
