Koyo 53414U
(BRAND)：KOYO
(Availability)：In Stock
Specifications

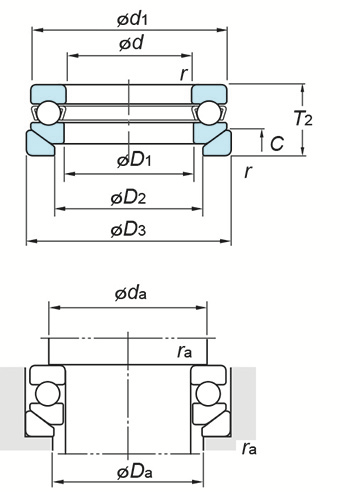

(Boundary dimensions ...etc)
d
70 mm
D
150 mm
T
69 mm
r(min.)
2 mm
Basic load ratings Ca
312 kN
Basic load ratings C0a
553 kN
Fatigue load limit : Cu
23.8 kN
Limiting speeds(Grease lub.)
940 min-1
Limiting speeds(Oil lub.)
1450 min-1
d1(max.)
150 mm
D1(min.)
73 mm
D2
110 mm
D3
155 mm
A
- mm
R
- mm
C
19.5 mm
Mounting dimensions
da(min.)
118 mm
Da(max.)
102 mm
ra(max.)
2 mm
Refer.
(Refer.)Mass
6.37 kg
