Koyo 53416U
(BRAND)：KOYO
(Availability)：In Stock
Specifications

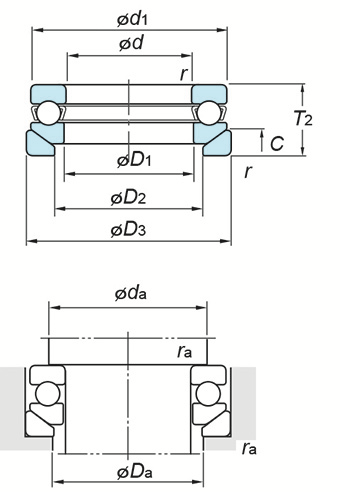

(Boundary dimensions ...etc)
d
80 mm
D
170 mm
T
78 mm
r(min.)
2.1 mm
Basic load ratings Ca
337 kN
Basic load ratings C0a
621 kN
Fatigue load limit : Cu
25.1 kN
Limiting speeds(Grease lub.)
810 min-1
Limiting speeds(Oil lub.)
1250 min-1
d1(max.)
170 mm
D1(min.)
83 mm
D2
125 mm
D3
175 mm
A
- mm
R
- mm
C
22 mm
Mounting dimensions
da(min.)
133 mm
Da(max.)
117 mm
ra(max.)
2 mm
Refer.
(Refer.)Mass
9.22 kg
