53417
MORE +
CLOSE +
/wp-content/uploads/2025/Thrust-Ball-Bearings.jpg
(BRAND):KOYO
(Availability):In Stock
(EMAIL):info@noksbearings.com

Detailed data of

53417

Specifications

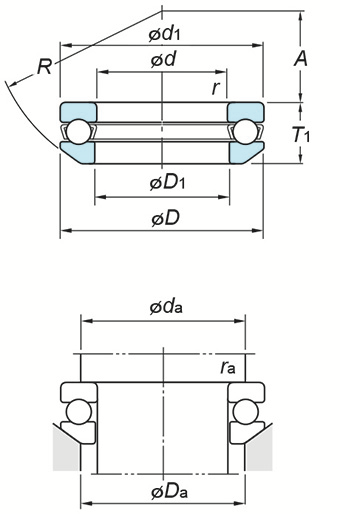

(Boundary dimensions ...etc)

d 85 mm
D 180 mm
T 77 mm
r(min.) 2.1 mm
Basic load ratings Ca 384 kN
Basic load ratings C0a 753 kN
Fatigue load limit : Cu 29.5 kN
Limiting speeds(Grease lub.) 780 min-1
Limiting speeds(Oil lub.) 1200 min-1
d1(max.) 177 mm
D1(min.) 88 mm
D2 - mm
D3 - mm
A 47 mm
R 140 mm
C - mm

Mounting dimensions

da(min.) 141 mm
Da(max.) 124 mm
ra(max.) 2 mm

Refer.

(Refer.)Mass 9.20 kg
