Koyo 56FC38170W
(BRAND)：KOYO
(Availability)：In Stock
Specifications

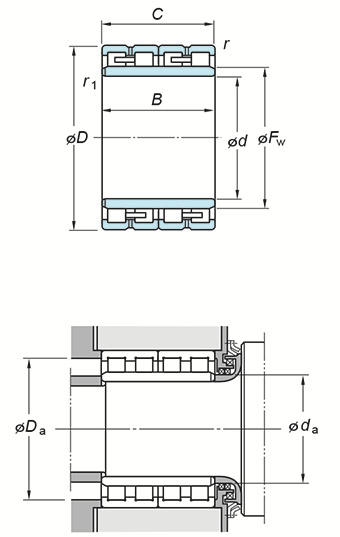

(Boundary dimensions ...etc)
d
280 mm
D
380 mm
B
170 mm
C
170 mm
Fw
306 mm
r(min.)
2.1 mm
r1(min.)
2.1 mm
Basic load ratings : Cr
1830 kN
Basic load ratings : C0r
3590 kN
Fatigue load limit : Cu
398 kN
Mounting dimensions
da(min.)
292 mm
Da(max.)
368 mm
da(min.)
356 mm
ra(max.)
2 mm
rb(max.)
2 mm
Refer.
(Refer.)Mass
55.0 kg
