Koyo 6008 ZZ
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

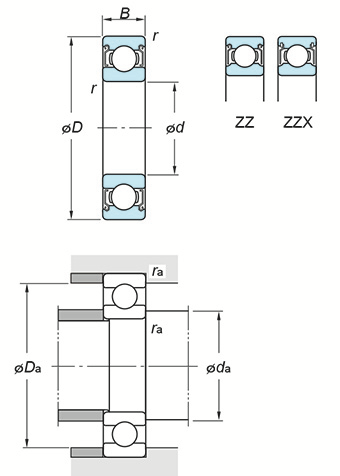

(Boundary dimensions ...etc)
d
40 mm
D
68 mm
B
15 mm
r(min.)
1 mm
Basic load ratings : Cr
20.9 kN
Basic load ratings : C0r
11.5 kN
Fatigue load limit : Cu
0.690 kN
factor : f0
15.2
Limiting speeds(Grease lub.)
10000 min-1
Limiting speeds(Oil lub.)
min-1
Mounting dimensions
da(min.)
45 mm
da(max.)
46.5 mm
Da(max.)
63 mm
ra(max.)
1 mm
Refer.
(Refer.)Mass
0.192 kg
