Koyo 60FC42300W
(BRAND)：KOYO
(Availability)：In Stock
Specifications

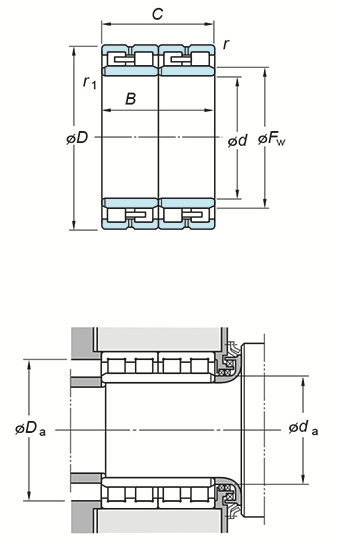

(Boundary dimensions ...etc)
d
300 mm
D
420 mm
B
300 mm
C
300 mm
Fw
332 mm
r(min.)
3 mm
r1(min.)
3 mm
Basic load ratings : Cr
3490 kN
Basic load ratings : C0r
7270 kN
Fatigue load limit : Cu
749 kN
Mounting dimensions
da(min.)
314 mm
Da(max.)
406 mm
da(min.)
394 mm
ra(max.)
2.5 mm
rb(max.)
2.5 mm
Refer.
(Refer.)Mass
127 kg
