Koyo 6207 ZZ
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

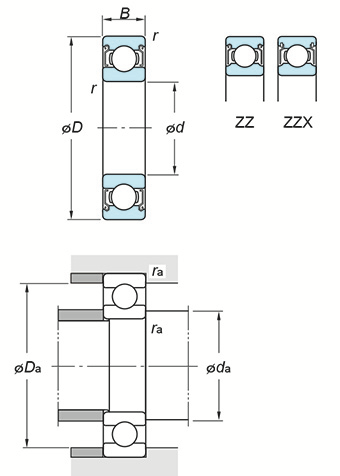

Specifications
(Boundary dimensions ...etc)
d
35 mm
D
72 mm
B
17 mm
r(min.)
1.1 mm
Basic load ratings : Cr
32.1 kN
Basic load ratings : C0r
15.4 kN
Fatigue load limit : Cu
1.10 kN
factor : f0
13.9
Limiting speeds(Grease lub.)
9200 min-1
Limiting speeds(Oil lub.)
min-1
Mounting dimensions
da(min.)
41.5 mm
da(max.)
43.5 mm
Da(max.)
65.5 mm
ra(max.)
1 mm
Refer.
(Refer.)Mass
0.288 kg
