Koyo 6304 ZZ
(BRAND)：KOYO
(Availability)：In Stock
Specifications

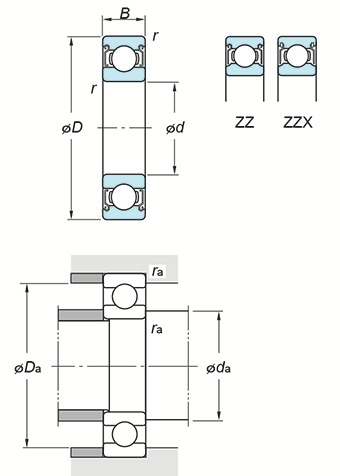

(Boundary dimensions ...etc)
d
20 mm
D
52 mm
B
15 mm
r(min.)
1.1 mm
Basic load ratings : Cr
19.9 kN
Basic load ratings : C0r
7.85 kN
Fatigue load limit : Cu
0.660 kN
factor : f0
12.3
Limiting speeds(Grease lub.)
14000 min-1
Limiting speeds(Oil lub.)
min-1
Mounting dimensions
da(min.)
26.5 mm
da(max.)
27 mm
Da(max.)
45.5 mm
ra(max.)
1 mm
Refer.
(Refer.)Mass
0.144 kg
