Koyo 6314 ZZ
(BRAND)：KOYO
(Availability)：In Stock
Specifications

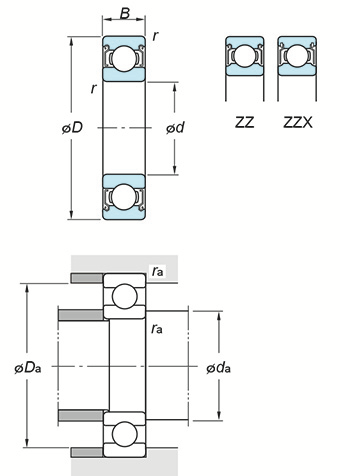

(Boundary dimensions ...etc)
d
70 mm
D
150 mm
B
35 mm
r(min.)
2.1 mm
Basic load ratings : Cr
130 kN
Basic load ratings : C0r
68.2 kN
Fatigue load limit : Cu
4.95 kN
factor : f0
13.2
Limiting speeds(Grease lub.)
4500 min-1
Limiting speeds(Oil lub.)
min-1
Mounting dimensions
da(min.)
81 mm
da(max.)
92 mm
Da(max.)
139 mm
ra(max.)
2 mm
Refer.
(Refer.)Mass
2.52 kg
