Koyo 6316 ZZ
(BRAND)：KOYO
(Availability)：In Stock
Specifications

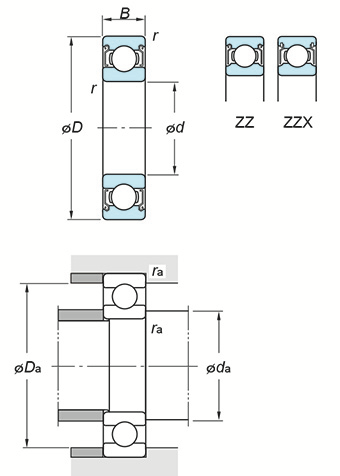

(Boundary dimensions ...etc)
d
80 mm
D
170 mm
B
39 mm
r(min.)
2.1 mm
Basic load ratings : Cr
154 kN
Basic load ratings : C0r
86.7 kN
Fatigue load limit : Cu
5.85 kN
factor : f0
13.3
Limiting speeds(Grease lub.)
3900 min-1
Limiting speeds(Oil lub.)
min-1
Mounting dimensions
da(min.)
91 mm
da(max.)
105 mm
Da(max.)
159 mm
ra(max.)
2 mm
Refer.
(Refer.)Mass
3.59 kg
