Koyo 6417
(BRAND)：KOYO
(Availability)：In Stock
Specifications

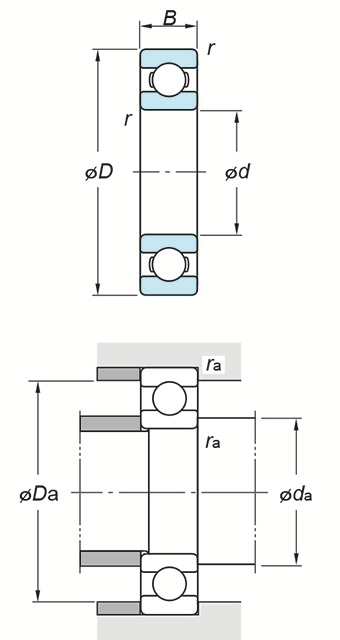

(Boundary dimensions ...etc)
d
85 mm
D
210 mm
B
52 mm
r(min.)
4 mm
Basic load ratings : Cr
217 kN
Basic load ratings : C0r
136 kN
Fatigue load limit : Cu
12.2 kN
factor : f0
12.3
Limiting speeds(Grease lub.)
3300 min-1
Limiting speeds(Oil lub.)
3900 min-1
Mounting dimensions
da(min.)
101 mm
Da(max.)
194 mm
ra(max.)
3 mm
Refer.
(Refer.)Mass
8.07 kg
