Koyo 6701 ZZX
(BRAND)：KOYO
(Availability)：In Stock
Specifications

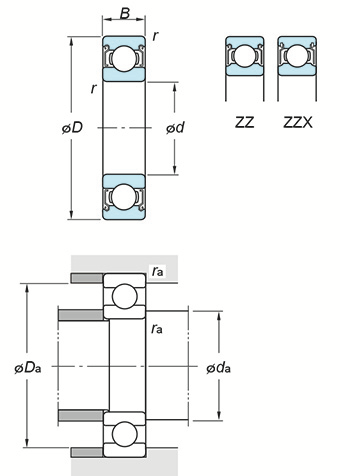

(Boundary dimensions ...etc)
d
12 mm
D
18 mm
B
4 mm
r(min.)
0.2 mm
Basic load ratings : Cr
1.15 kN
Basic load ratings : C0r
0.530 kN
Fatigue load limit : Cu
0.023 kN
factor : f0
16.2
Limiting speeds(Grease lub.)
34000 min-1
Limiting speeds(Oil lub.)
min-1
Mounting dimensions
da(min.)
13.6 mm
da(max.)
mm
Da(max.)
16.4 mm
ra(max.)
0.2 mm
Refer.
(Refer.)Mass
0.003 kg
