Koyo 6702 ZZX
(BRAND)：KOYO
(Availability)：In Stock
Specifications
(Boundary dimensions ...etc)
d
15 mm
D
21 mm
B
4 mm
r(min.)
0.2 mm
Basic load ratings : Cr
1.15 kN
Basic load ratings : C0r
0.580 kN
Fatigue load limit : Cu
0.024 kN
factor : f0
16.7
Limiting speeds(Grease lub.)
29000 min-1
Limiting speeds(Oil lub.)
min-1

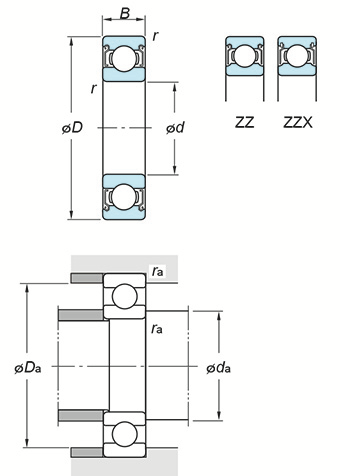

Mounting dimensions
da(min.)
16.6 mm
da(max.)
mm
Da(max.)
19.4 mm
ra(max.)
0.2 mm
Refer.
(Refer.)Mass
0.004 kg
