Koyo 6703 ZZ
(BRAND)：KOYO
(Availability)：In Stock
Specifications

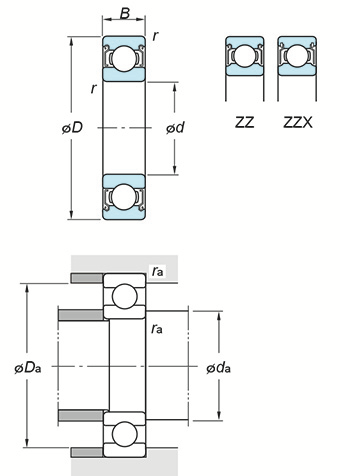

(Boundary dimensions ...etc)
d
17 mm
D
23 mm
B
4 mm
r(min.)
0.2 mm
Basic load ratings : Cr
1.25 kN
Basic load ratings : C0r
0.660 kN
Fatigue load limit : Cu
0.027 kN
factor : f0
16.9
Limiting speeds(Grease lub.)
27000 min-1
Limiting speeds(Oil lub.)
min-1
Mounting dimensions
da(min.)
18.6 mm
da(max.)
mm
Da(max.)
21.4 mm
ra(max.)
0.2 mm
Refer.
(Refer.)Mass
0.005 kg
