Koyo 68/900
(BRAND)：KOYO
(Availability)：In Stock
Specifications

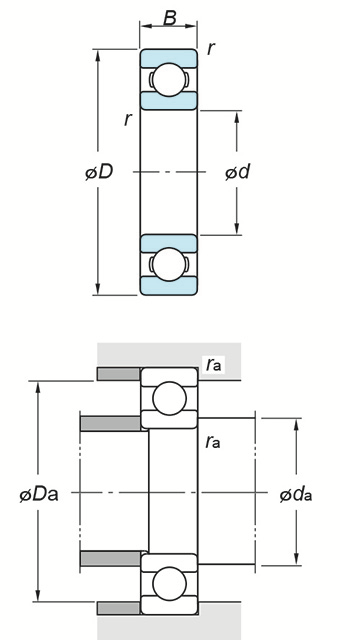

(Boundary dimensions ...etc)
d
900 mm
D
1090 mm
B
85 mm
r(min.)
5 mm
Basic load ratings : Cr
764 kN
Basic load ratings : C0r
1450 kN
Fatigue load limit : Cu
23.8 kN
factor : f0
15.9
Limiting speeds(Grease lub.)
220 min-1
Limiting speeds(Oil lub.)
260 min-1
Mounting dimensions
da(min.)
920 mm
Da(max.)
1070 mm
ra(max.)
4 mm
Refer.
(Refer.)Mass
162 kg
