Koyo 6803 ZZ
(BRAND)：KOYO
(Availability)：In Stock
Specifications

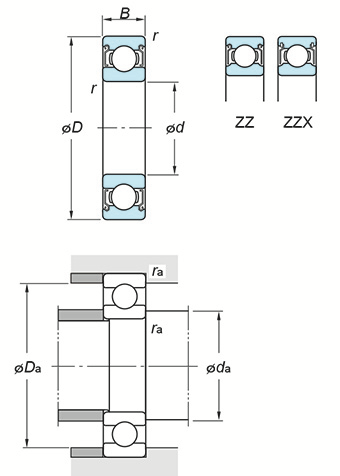

(Boundary dimensions ...etc)
d
17 mm
D
26 mm
B
5 mm
r(min.)
0.3 mm
Basic load ratings : Cr
3.30 kN
Basic load ratings : C0r
1.55 kN
Fatigue load limit : Cu
0.060 kN
factor : f0
15.7
Limiting speeds(Grease lub.)
26000 min-1
Limiting speeds(Oil lub.)
min-1
Mounting dimensions
da(min.)
19 mm
da(max.)
19 mm
Da(max.)
24 mm
ra(max.)
0.3 mm
Refer.
(Refer.)Mass
0.008 kg
