Koyo 6809 ZZ
(BRAND)：KOYO
(Availability)：In Stock
Specifications

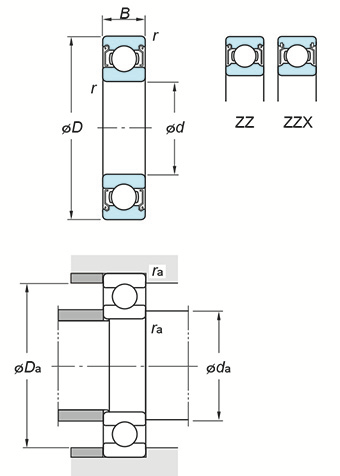

(Boundary dimensions ...etc)
d
45 mm
D
58 mm
B
7 mm
r(min.)
0.3 mm
Basic load ratings : Cr
7.75 kN
Basic load ratings : C0r
5.40 kN
Fatigue load limit : Cu
0.230 kN
factor : f0
16.3
Limiting speeds(Grease lub.)
11000 min-1
Limiting speeds(Oil lub.)
min-1
Mounting dimensions
da(min.)
47 mm
da(max.)
47 mm
Da(max.)
56 mm
ra(max.)
0.3 mm
Refer.
(Refer.)Mass
0.040 kg
