Home Brand KOYO Rolling mill roll neck bearings

68FC45250BW

MORE +

CLOSE +

/wp-content/uploads/2025/4CR120_1.png

Koyo 68FC45250BW

Rolling mill roll neck bearings

(BRAND)：KOYO

(Availability)：In Stock

(EMAIL)：info@noksbearings.com

Detailed data of

68FC45250BW

Rolling mill roll neck bearings

Specifications

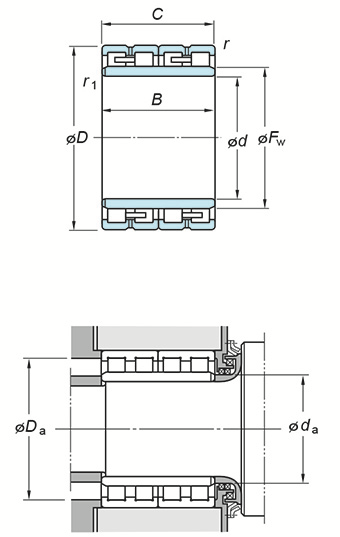

(Boundary dimensions ...etc)

d 340 mm

D 450 mm

B 250 mm

C 250 mm

Fw 368 mm

r(min.) 2.1 mm

r1(min.) 2.1 mm

Basic load ratings : Cr 2940 kN

Basic load ratings : C0r 6480 kN

Fatigue load limit : Cu 672 kN

Mounting dimensions

da(min.) 352 mm

Da(max.) 438 mm

da(min.) 424 mm

ra(max.) 2 mm

rb(max.) 2 mm

Refer.

(Refer.)Mass 106 kg
