Koyo 68FC48350-2
(BRAND)：KOYO
(Availability)：In Stock
Specifications

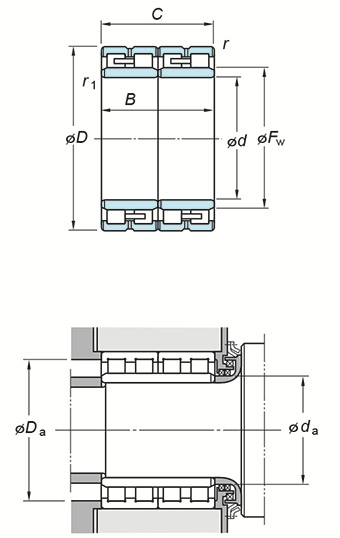

(Boundary dimensions ...etc)
d
340 mm
D
480 mm
B
350 mm
C
350 mm
Fw
378 mm
r(min.)
4 mm
r1(min.)
SP mm
Basic load ratings : Cr
4920 kN
Basic load ratings : C0r
11100 kN
Fatigue load limit : Cu
1100 kN
Mounting dimensions
da(min.)
354 mm
Da(max.)
462 mm
da(min.)
446 mm
ra(max.)
3 mm
rb(max.)
2 mm
Refer.
(Refer.)Mass
211 kg
