Koyo 6909 ZZ
(BRAND)：KOYO
(Availability)：In Stock
Specifications

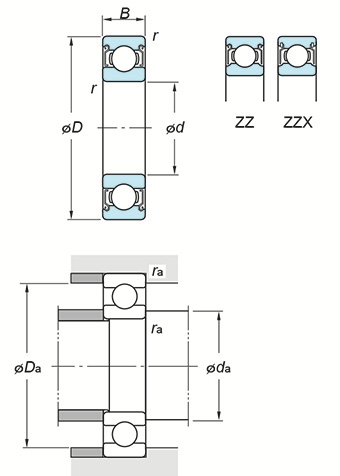

(Boundary dimensions ...etc)
d
45 mm
D
68 mm
B
12 mm
r(min.)
0.6 mm
Basic load ratings : Cr
17.7 kN
Basic load ratings : C0r
10.9 kN
Fatigue load limit : Cu
0.600 kN
factor : f0
15.9
Limiting speeds(Grease lub.)
9700 min-1
Limiting speeds(Oil lub.)
min-1
Mounting dimensions
da(min.)
49 mm
da(max.)
50 mm
Da(max.)
64 mm
ra(max.)
0.6 mm
Refer.
(Refer.)Mass
0.132 kg
