Koyo 7003CDB FY
(BRAND)：KOYO
(Availability)：In Stock
Specifications

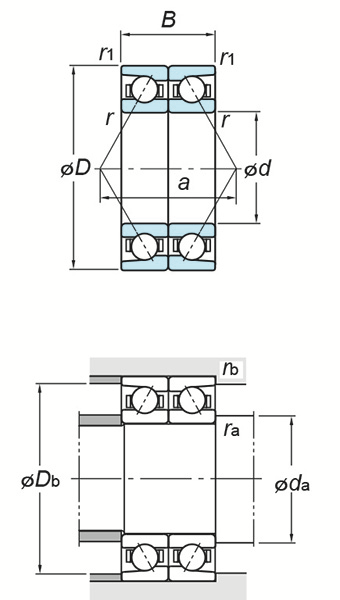

(Boundary dimensions ...etc)
d
17 mm
D
35 mm
B
20 mm
r(min.)
0.3 mm
r1(min.)
0.15 mm
Basic load ratings : Cr
14.8 kN
Basic load ratings : C0r
8.95 kN
Fatigue load limit : Cu
0.460 kN
factor : f0
14.6
Limiting speeds(Grease lub.)
25000 min-1
Limiting speeds(Oil lub.)
33000 min-1
Load center spread : a
17.1 mm
Mounting dimensions
da(min.)
19.5 mm
Db(max.)
33.8 mm
ra(max.)
0.3 mm
rb(max.)
0.15 mm
Refer.
(Refer.)Mass
0.090 kg
