Koyo 7008B FY
(BRAND)：KOYO
(Availability)：In Stock
Specifications

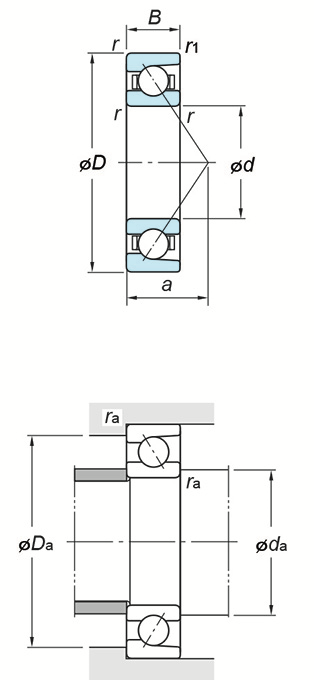

(Boundary dimensions ...etc)
d
40 mm
D
68 mm
B
15 mm
r(min.)
1 mm
r1(min.)
0.6 mm
Basic load ratings : Cr
21.1 kN
Basic load ratings : C0r
13.2 kN
Fatigue load limit : Cu
0.720 kN
factor : f0
-
Limiting speeds(Grease lub.)
8300 min-1
Limiting speeds(Oil lub.)
11000 min-1
Load center spread : a
30.2 mm
Mounting dimensions
da(min.)
45.5 mm
Da(max.)
62.5 mm
ra(max.)
1 mm
Refer.
(Refer.)Mass
0.210 kg
