Koyo 7224 FY
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

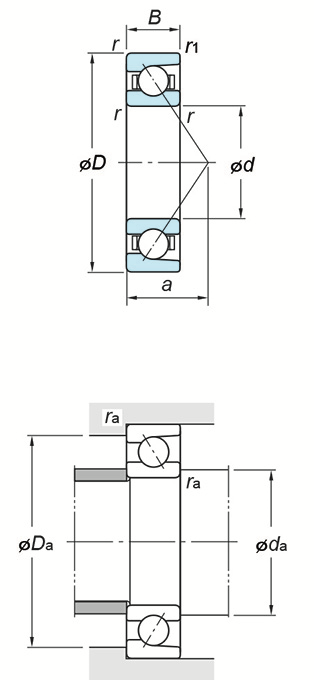

(Boundary dimensions ...etc)
d
120 mm
D
215 mm
B
40 mm
r(min.)
2.1 mm
r1(min.)
1.1 mm
Basic load ratings : Cr
218 kN
Basic load ratings : C0r
166 kN
Fatigue load limit : Cu
7.85 kN
factor : f0
-
Limiting speeds(Grease lub.)
3400 min-1
Limiting speeds(Oil lub.)
4300 min-1
Load center spread : a
68.5 mm
Mounting dimensions
da(min.)
132 mm
Da(max.)
203 mm
ra(max.)
2 mm
Refer.
(Refer.)Mass
5.49 kg
