Koyo 72FC48290
(BRAND)：KOYO
(Availability)：In Stock

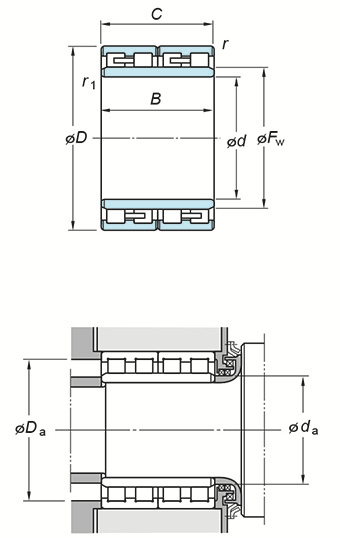

Specifications
(Boundary dimensions ...etc)
d
360 mm
D
480 mm
B
290 mm
C
290 mm
Fw
392 mm
r(min.)
3 mm
r1(min.)
3 mm
Basic load ratings : Cr
3720 kN
Basic load ratings : C0r
8510 kN
Fatigue load limit : Cu
842 kN
Mounting dimensions
da(min.)
374 mm
Da(max.)
466 mm
da(min.)
452 mm
ra(max.)
2.5 mm
rb(max.)
2.5 mm
Refer.
(Refer.)Mass
145 kg
