Koyo 7304CDB FY
(BRAND)：KOYO
(Availability)：In Stock
Specifications

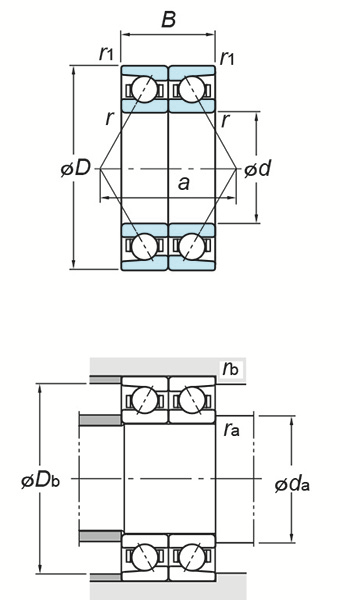

(Boundary dimensions ...etc)
d
20 mm
D
52 mm
B
30 mm
r(min.)
1.1 mm
r1(min.)
0.6 mm
Basic load ratings : Cr
37.6 kN
Basic load ratings : C0r
19.9 kN
Fatigue load limit : Cu
1.55 kN
factor : f0
12.6
Limiting speeds(Grease lub.)
18000 min-1
Limiting speeds(Oil lub.)
24000 min-1
Load center spread : a
24.6 mm
Mounting dimensions
da(min.)
27 mm
Db(max.)
47.5 mm
ra(max.)
1 mm
rb(max.)
0.6 mm
Refer.
(Refer.)Mass
0.300 kg
