Koyo 7316 FY
(BRAND)：KOYO
(Availability)：In Stock
Specifications

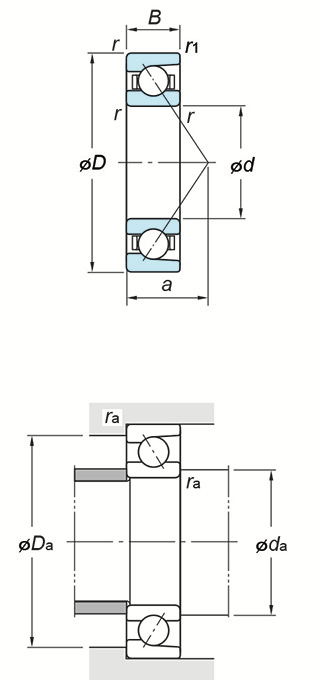

(Boundary dimensions ...etc)
d
80 mm
D
170 mm
B
39 mm
r(min.)
2.1 mm
r1(min.)
1.1 mm
Basic load ratings : Cr
174 kN
Basic load ratings : C0r
109 kN
Fatigue load limit : Cu
6.75 kN
factor : f0
-
Limiting speeds(Grease lub.)
4700 min-1
Limiting speeds(Oil lub.)
5900 min-1
Load center spread : a
55.6 mm
Mounting dimensions
da(min.)
92 mm
Da(max.)
158 mm
ra(max.)
2 mm
Refer.
(Refer.)Mass
3.85 kg
