Koyo 7316DB FY
(BRAND)：KOYO
(Availability)：In Stock
Specifications

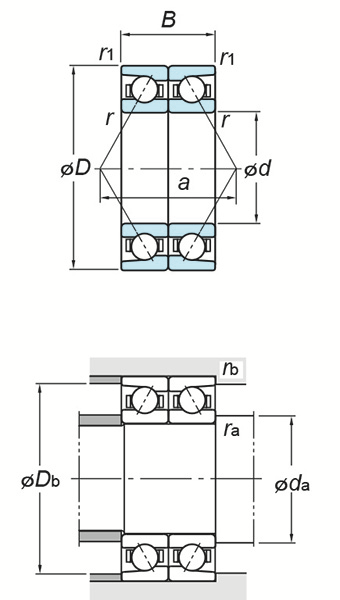

(Boundary dimensions ...etc)
d
80 mm
D
170 mm
B
78 mm
r(min.)
2.1 mm
r1(min.)
1.1 mm
Basic load ratings : Cr
282 kN
Basic load ratings : C0r
218 kN
Fatigue load limit : Cu
13.5 kN
factor : f0
-
Limiting speeds(Grease lub.)
3800 min-1
Limiting speeds(Oil lub.)
4700 min-1
Load center spread : a
111.2 mm
Mounting dimensions
da(min.)
92 mm
Db(max.)
163 mm
ra(max.)
2 mm
rb(max.)
1 mm
Refer.
(Refer.)Mass
7.70 kg
