Koyo 7409BDB FY
(BRAND)：KOYO
(Availability)：In Stock
Specifications

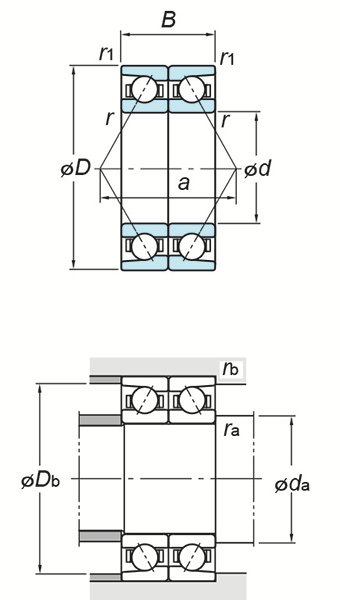

(Boundary dimensions ...etc)
d
45 mm
D
120 mm
B
58 mm
r(min.)
2 mm
r1(min.)
1 mm
Basic load ratings : Cr
160 kN
Basic load ratings : C0r
100 kN
Fatigue load limit : Cu
7.20 kN
factor : f0
-
Limiting speeds(Grease lub.)
3600 min-1
Limiting speeds(Oil lub.)
5400 min-1
Load center spread : a
99.1 mm
Mounting dimensions
da(min.)
55 mm
Db(max.)
114.5 mm
ra(max.)
2 mm
rb(max.)
1 mm
Refer.
(Refer.)Mass
3.10 kg
