Koyo 7909CDB FY
(BRAND)：KOYO
(Availability)：In Stock
Specifications

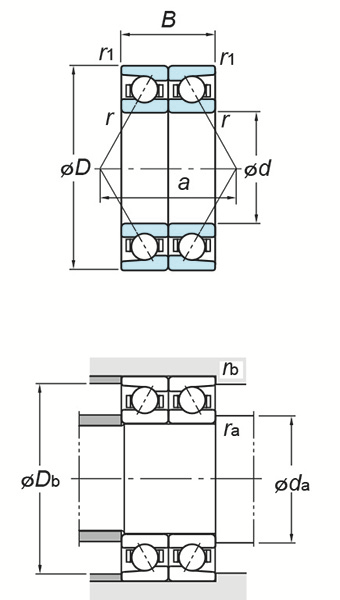

(Boundary dimensions ...etc)
d
45 mm
D
68 mm
B
24 mm
r(min.)
0.6 mm
r1(min.)
0.3 mm
Basic load ratings : Cr
33.7 kN
Basic load ratings : C0r
28.2 kN
Fatigue load limit : Cu
1.55 kN
factor : f0
16.0
Limiting speeds(Grease lub.)
12000 min-1
Limiting speeds(Oil lub.)
16000 min-1
Load center spread : a
27.1 mm
Mounting dimensions
da(min.)
49.5 mm
Db(max.)
65.5 mm
ra(max.)
0.6 mm
rb(max.)
0.3 mm
Refer.
(Refer.)Mass
0.254 kg
