Koyo 7912C FY
(BRAND)：KOYO
(Availability)：In Stock
Specifications

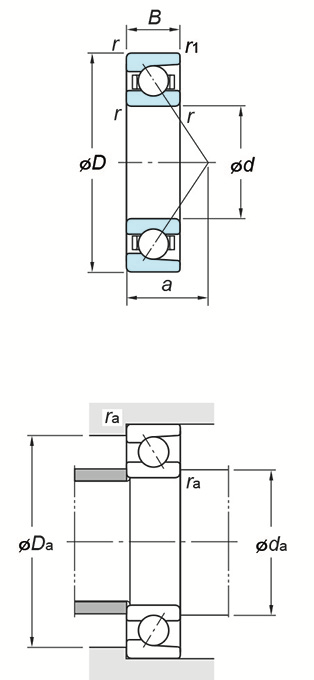

(Boundary dimensions ...etc)
d
60 mm
D
85 mm
B
13 mm
r(min.)
1 mm
r1(min.)
0.6 mm
Basic load ratings : Cr
29.0 kN
Basic load ratings : C0r
21.8 kN
Fatigue load limit : Cu
1.15 kN
factor : f0
16.3
Limiting speeds(Grease lub.)
12000 min-1
Limiting speeds(Oil lub.)
16000 min-1
Load center spread : a
16.3 mm
Mounting dimensions
da(min.)
65.5 mm
Da(max.)
79.5 mm
ra(max.)
1 mm
Refer.
(Refer.)Mass
0.187 kg
