Koyo 82FC55400
(BRAND)：KOYO
(Availability)：In Stock
Specifications

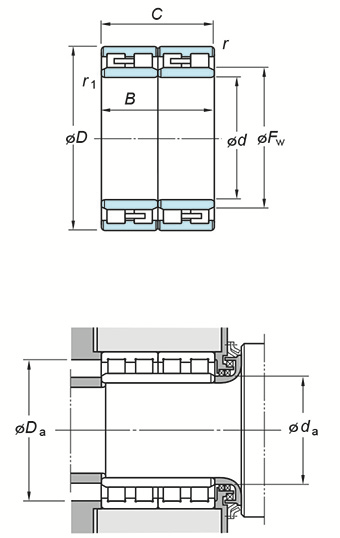

(Boundary dimensions ...etc)
d
410 mm
D
546 mm
B
400 mm
C
400 mm
Fw
448 mm
r(min.)
5 mm
r1(min.)
5 mm
Basic load ratings : Cr
5360 kN
Basic load ratings : C0r
13000 kN
Fatigue load limit : Cu
1240 kN
Mounting dimensions
da(min.)
432 mm
Da(max.)
524 mm
da(min.)
516 mm
ra(max.)
4 mm
rb(max.)
4 mm
Refer.
(Refer.)Mass
256 kg
