Koyo 84FC56280
(BRAND)：KOYO
(Availability)：In Stock
Specifications

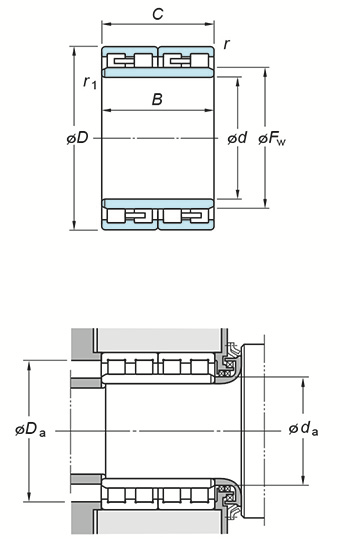

(Boundary dimensions ...etc)
d
420 mm
D
560 mm
B
280 mm
C
280 mm
Fw
457 mm
r(min.)
4 mm
r1(min.)
4 mm
Basic load ratings : Cr
4200 kN
Basic load ratings : C0r
9410 kN
Fatigue load limit : Cu
913 kN
Mounting dimensions
da(min.)
438 mm
Da(max.)
542 mm
da(min.)
527 mm
ra(max.)
3 mm
rb(max.)
3 mm
Refer.
(Refer.)Mass
189 kg
