Koyo 84FC56400
(BRAND)：KOYO
(Availability)：In Stock

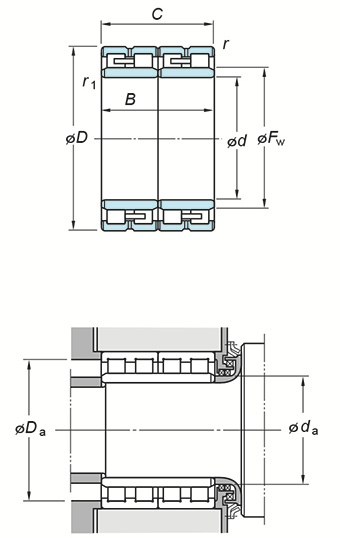

Specifications
(Boundary dimensions ...etc)
d
420 mm
D
560 mm
B
400 mm
C
400 mm
Fw
458 mm
r(min.)
4 mm
r1(min.)
4 mm
Basic load ratings : Cr
5220 kN
Basic load ratings : C0r
12700 kN
Fatigue load limit : Cu
1200 kN
Mounting dimensions
da(min.)
438 mm
Da(max.)
542 mm
da(min.)
526 mm
ra(max.)
3 mm
rb(max.)
3 mm
Refer.
(Refer.)Mass
270 kg
