Koyo 84FC58320
(BRAND)：KOYO
(Availability)：In Stock
Specifications

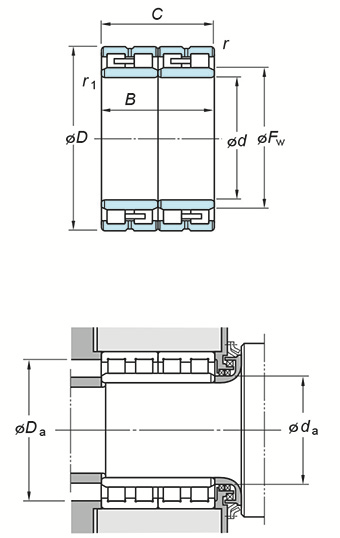

(Boundary dimensions ...etc)
d
420 mm
D
580 mm
B
320 mm
C
320 mm
Fw
463 mm
r(min.)
4 mm
r1(min.)
4 mm
Basic load ratings : Cr
5110 kN
Basic load ratings : C0r
11000 kN
Fatigue load limit : Cu
1070 kN
Mounting dimensions
da(min.)
438 mm
Da(max.)
562 mm
da(min.)
543 mm
ra(max.)
3 mm
rb(max.)
3 mm
Refer.
(Refer.)Mass
249 kg
