Koyo 99FC62360
(BRAND)：KOYO
(Availability)：In Stock
Specifications

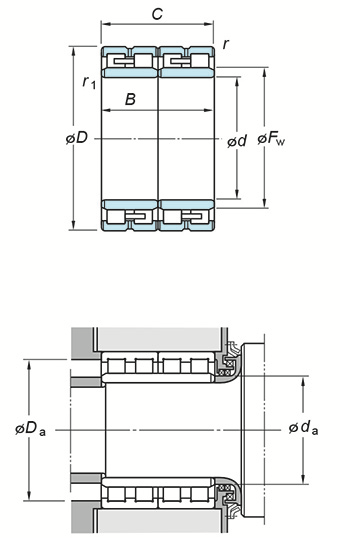

(Boundary dimensions ...etc)
d
495 mm
D
615 mm
B
360 mm
C
360 mm
Fw
530 mm
r(min.)
SP mm
r1(min.)
SP mm
Basic load ratings : Cr
4340 kN
Basic load ratings : C0r
12000 kN
Fatigue load limit : Cu
1100 kN
Mounting dimensions
da(min.)
511 mm
Da(max.)
597 mm
da(min.)
586 mm
ra(max.)
3 mm
rb(max.)
3 mm
Refer.
(Refer.)Mass
235 kg
