Koyo AXK0619TN
(BRAND)：KOYO
(Availability)：In Stock
Specifications

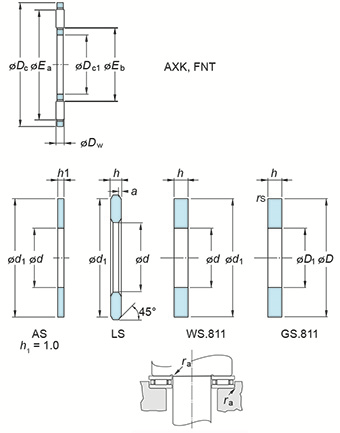

(Boundary dimensions ...etc)
Dc1
6 mm
Dc
19 mm
Dw
2 mm
Ea
16.9 mm
Eb
7.8 mm
ra(max.)
0.3 mm
Basic load ratings Ca
6.37 kN
Basic load ratings C0a
14.3 kN
Fatigue load limit : Cu
1.40 kN
Limiting speeds(Oil lub.)
23000 min-1
Washer dimensions : d
mm
Washer dimensions : D,d1
19 mm
Washer dimensions : D1
mm
Thin - Washer dimensions : h1
1.00 mm
Thin - Washer No.
AS0619
Thin - (Refer.)Mass
0.001 kg
Heavy(LS) - Washer dimensions : h
mm
Heavy(LS) - Washer dimensions : a
mm
Heavy(LS) - Washer No.
Heavy(LS) - (Refer.)Mass
kg
Heavy - Washer dimensions : h
mm
Heavy - Washer dimensions : r(min.)
mm
Heavy - Washer No(Shaft piloted)
Heavy - Washer No.(Housing piloted)
Heavy - (Refer.)Mass
kg
Mounting dimensions
Refer.
(Refer.)Mass
0.001 kg
