Koyo AXK110145
(BRAND)：KOYO
(Availability)：In Stock
Specifications

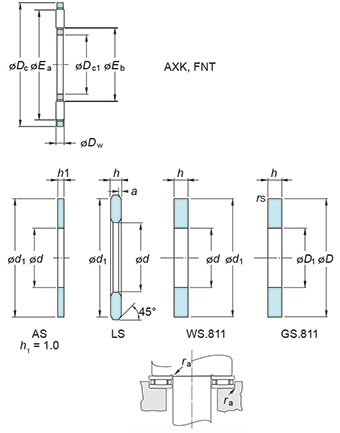

(Boundary dimensions ...etc)
Dc1
110 mm
Dc
145 mm
Dw
4 mm
Ea
143.0 mm
Eb
115.0 mm
ra(max.)
0.6 mm
Basic load ratings Ca
93.2 kN
Basic load ratings C0a
591 kN
Fatigue load limit : Cu
59.0 kN
Limiting speeds(Oil lub.)
2800 min-1
Washer dimensions : d
mm
Washer dimensions : D,d1
145 mm
Washer dimensions : D1
mm
Thin - Washer dimensions : h1
1.00 mm
Thin - Washer No.
AS110145
Thin - (Refer.)Mass
0.055 kg
Heavy(LS) - Washer dimensions : h
7.00 mm
Heavy(LS) - Washer dimensions : a
1.50 mm
Heavy(LS) - Washer No.
LS110145
Heavy(LS) - (Refer.)Mass
0.373 kg
Heavy - Washer dimensions : h
7.00 mm
Heavy - Washer dimensions : r(min.)
mm
Heavy - Washer No(Shaft piloted)
Heavy - Washer No.(Housing piloted)
Heavy - (Refer.)Mass
kg
Mounting dimensions
Refer.
(Refer.)Mass
0.117 kg
