Koyo AXK120155
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

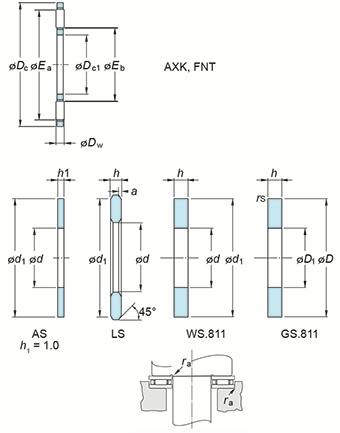

(Boundary dimensions ...etc)
Dc1
120 mm
Dc
155 mm
Dw
4 mm
Ea
153.0 mm
Eb
125.0 mm
ra(max.)
0.6 mm
Basic load ratings Ca
98.5 kN
Basic load ratings C0a
650 kN
Fatigue load limit : Cu
63.5 kN
Limiting speeds(Oil lub.)
2700 min-1
Washer dimensions : d
mm
Washer dimensions : D,d1
155 mm
Washer dimensions : D1
mm
Thin - Washer dimensions : h1
1.00 mm
Thin - Washer No.
AS120155
Thin - (Refer.)Mass
0.059 kg
Heavy(LS) - Washer dimensions : h
mm
Heavy(LS) - Washer dimensions : a
mm
Heavy(LS) - Washer No.
Heavy(LS) - (Refer.)Mass
kg
Heavy - Washer dimensions : h
mm
Heavy - Washer dimensions : r(min.)
mm
Heavy - Washer No(Shaft piloted)
Heavy - Washer No.(Housing piloted)
Heavy - (Refer.)Mass
kg
Mounting dimensions
Refer.
(Refer.)Mass
0.126 kg
