Koyo AXK7095
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

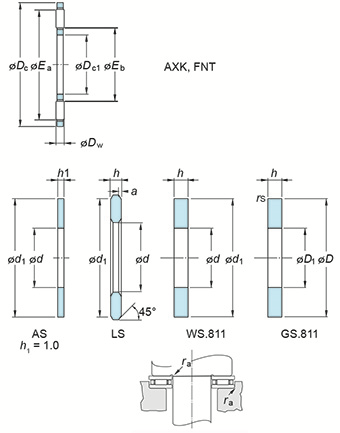

(Boundary dimensions ...etc)
Dc1
70 mm
Dc
95 mm
Dw
4 mm
Ea
93.0 mm
Eb
74.0 mm
ra(max.)
0.6 mm
Basic load ratings Ca
53.8 kN
Basic load ratings C0a
253 kN
Fatigue load limit : Cu
28.0 kN
Limiting speeds(Oil lub.)
4400 min-1
Washer dimensions : d
mm
Washer dimensions : D,d1
95 mm
Washer dimensions : D1
72 mm
Thin - Washer dimensions : h1
1.00 mm
Thin - Washer No.
AS7095
Thin - (Refer.)Mass
0.025 kg
Heavy(LS) - Washer dimensions : h
5.25 mm
Heavy(LS) - Washer dimensions : a
1.50 mm
Heavy(LS) - Washer No.
LS7095
Heavy(LS) - (Refer.)Mass
0.1280 kg
Heavy - Washer dimensions : h
5.25 mm
Heavy - Washer dimensions : r(min.)
1.00 mm
Heavy - Washer No(Shaft piloted)
WS.81114
Heavy - Washer No.(Housing piloted)
GS.81114
Heavy - (Refer.)Mass
0.133 kg
Mounting dimensions
Refer.
(Refer.)Mass
0.055 kg
