Koyo BLF202
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

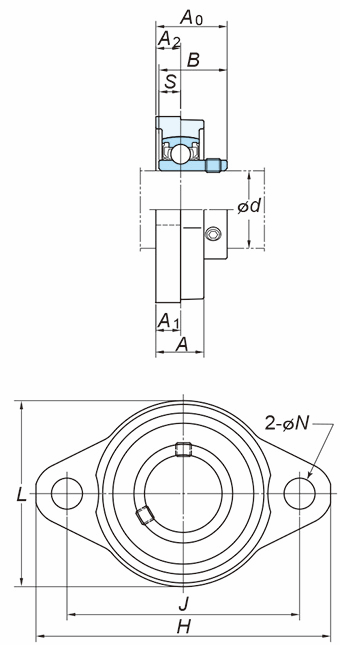

(Boundary dimensions ...etc)
d
15 mm
H
81 mm
L
52 mm
A
18 mm
J
63.5 mm
N
8 mm
A1
9.5 mm
A2
9.5 mm
S
6 mm
BLF - A0
25.5 mm
BLF - B
22 mm
ALF - A01
mm
ALF - B1
mm
Bolt size
M6
Basic load ratings : Cr
9.55 kN
Basic load ratings : C0r
4.80 kN
Fatigue load limit : Cu
0.218 kN
factor : f0
13.2
(Refer.)Unit mass - BLF
0.25 kg
(Refer.)Unit mass - ALF
kg
