Koyo BLF204
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

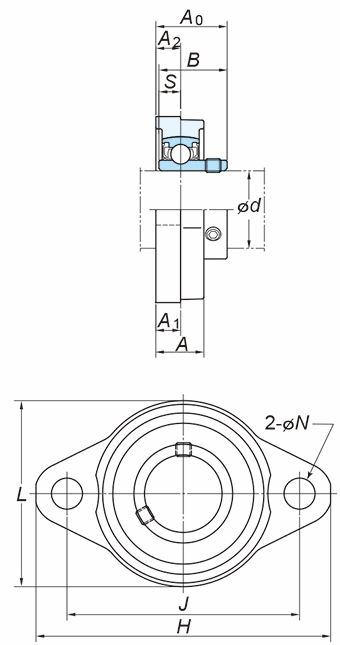

(Boundary dimensions ...etc)
d
20 mm
H
90 mm
L
60 mm
A
20 mm
J
71.5 mm
N
10 mm
A1
11 mm
A2
11 mm
S
7 mm
BLF - A0
29 mm
BLF - B
25 mm
ALF - A01
mm
ALF - B1
mm
Bolt size
M8
Basic load ratings : Cr
12.8 kN
Basic load ratings : C0r
6.65 kN
Fatigue load limit : Cu
0.302 kN
factor : f0
13.2
(Refer.)Unit mass - BLF
0.33 kg
(Refer.)Unit mass - ALF
kg
