Koyo BLF205
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

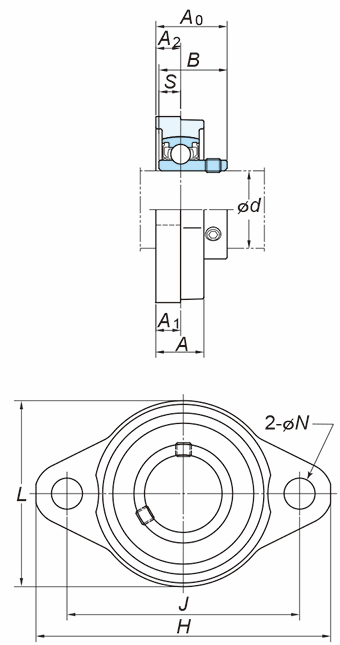

(Boundary dimensions ...etc)
d
25 mm
H
95 mm
L
64 mm
A
20 mm
J
76 mm
N
10 mm
A1
11 mm
A2
11 mm
S
7.5 mm
BLF - A0
30.5 mm
BLF - B
27 mm
ALF - A01
mm
ALF - B1
mm
Bolt size
M8
Basic load ratings : Cr
14.0 kN
Basic load ratings : C0r
7.85 kN
Fatigue load limit : Cu
0.357 kN
factor : f0
13.9
(Refer.)Unit mass - BLF
0.38 kg
(Refer.)Unit mass - ALF
kg
