Koyo BLF206
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

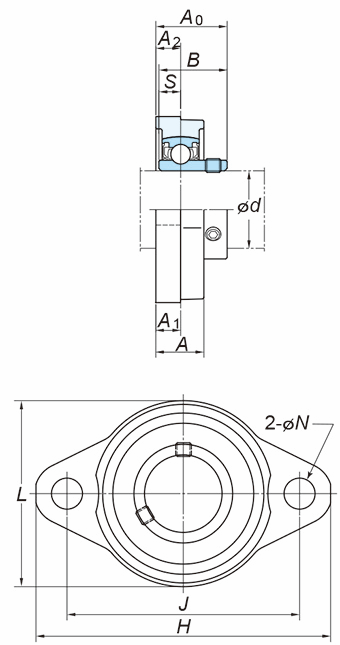

(Boundary dimensions ...etc)
d
30 mm
H
113 mm
L
76 mm
A
22.5 mm
J
90.5 mm
N
12 mm
A1
12 mm
A2
12 mm
S
8 mm
BLF - A0
34 mm
BLF - B
30 mm
ALF - A01
mm
ALF - B1
mm
Bolt size
M10
Basic load ratings : Cr
19.5 kN
Basic load ratings : C0r
11.3 kN
Fatigue load limit : Cu
0.514 kN
factor : f0
13.9
(Refer.)Unit mass - BLF
0.57 kg
(Refer.)Unit mass - ALF
kg
